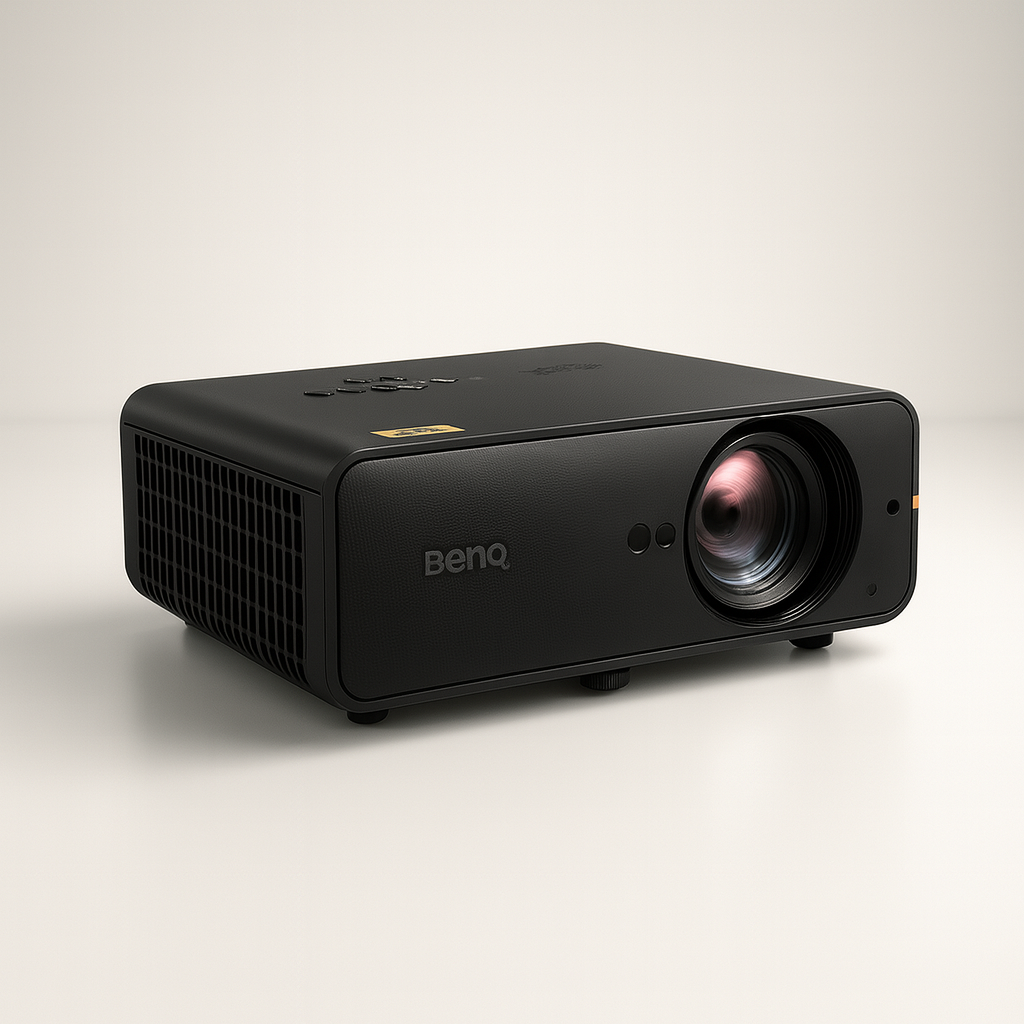

BENQ AH500ST PROJECTOR

Bright Short-Throw. Built for Sim Bays.

3000-lumen Full HD projector with 0.69–0.83 throw — sharp, compact and golf-ready.

The BenQ AH500ST is a short-throw 1080p projector designed for golf simulators and gaming. With 3000 ANSI lumens, Full HD resolution and a flexible 0.69–0.83 throw ratio, it delivers bright, clear visuals in compact bays. At just 2.79 kg, it’s lightweight, quiet, and easy to mount.

Key Benefits

• ⛳ Space-Saving Short Throw – 0.69–0.83 throw ratio projects a 100″ image from just ~2.0 m.
• ⛳ Bright & Clear – 3000 ANSI lumens makes images vivid even with some ambient light.
• ⛳ Sharp Full HD Detail – Native 1080p (1920×1080) resolution with rich, accurate colours.
• ⛳ Quiet Operation – Low fan noise (~29 dB Eco) keeps focus on the game.
• ⛳ Easy Setup – Vertical keystone, 1.2× zoom and compact chassis simplify placement.

Features & Technical Specs

• ⚪ Resolution: 1080p (1920×1080), 16:9 aspect
• ⚪ Brightness: 3000 ANSI lumens
• ⚪ Contrast Ratio: up to 20,000:1 (dynamic)
• ⚪ Throw Ratio: 0.69–0.83 • 1.2× zoom
• ⚪ Image Size: 60″–200″ diagonal (100″ from ~2.0 m)
• ⚪ Keystone: Vertical ±30°
• ⚪ Inputs: 2× HDMI, USB-A (power), RS-232, audio out
• ⚪ Light Source: Lamp, up to 15,000 hrs (LampSave mode)
• ⚪ Dimensions/Weight: 296 × 120 × 221 mm; 2.79 kg
• ⚪ Noise Level: ~33 dB (Normal) / 29 dB (Eco)

Recommended Sim Use

• 🎯 Throw Distance: ~2.0 m for 100″ image; ~2.7 m for 135″; use 0.69–0.83 ratio to size to your screen.
• 🎥 Aspect Ratio: Native 16:9. For 4:3 enclosures, expect side bars or scale via PC software.
• 🔧 Mounting: Ceiling or shelf mount; minimise keystone for sharpest results.

What’s in the Box

• 📦 BenQ AH500ST Projector
• 📦 Remote Control (with batteries)
• 📦 Power Cable
• 📦 Documentation

Order Yours Today

🏌️ Need a bright, compact short-throw projector? Add the BenQ AH500ST to your golf simulator bay for sharp 1080p visuals and easy setup.

FAQ

Q: Is this a short-throw projector?
A: Yes — with a 0.69–0.83 throw ratio, it fills a 100″ screen from just ~2.0 m.

Q: How bright is it?
A: Rated at 3000 ANSI lumens, it performs well in dim to moderately lit rooms.

Q: Does it support 4K input?
A: It’s a native 1080p projector but can accept 4K input signals (downscaled).

Q: How long does the lamp last?
A: Up to 15,000 hours in LampSave mode, depending on usage.
