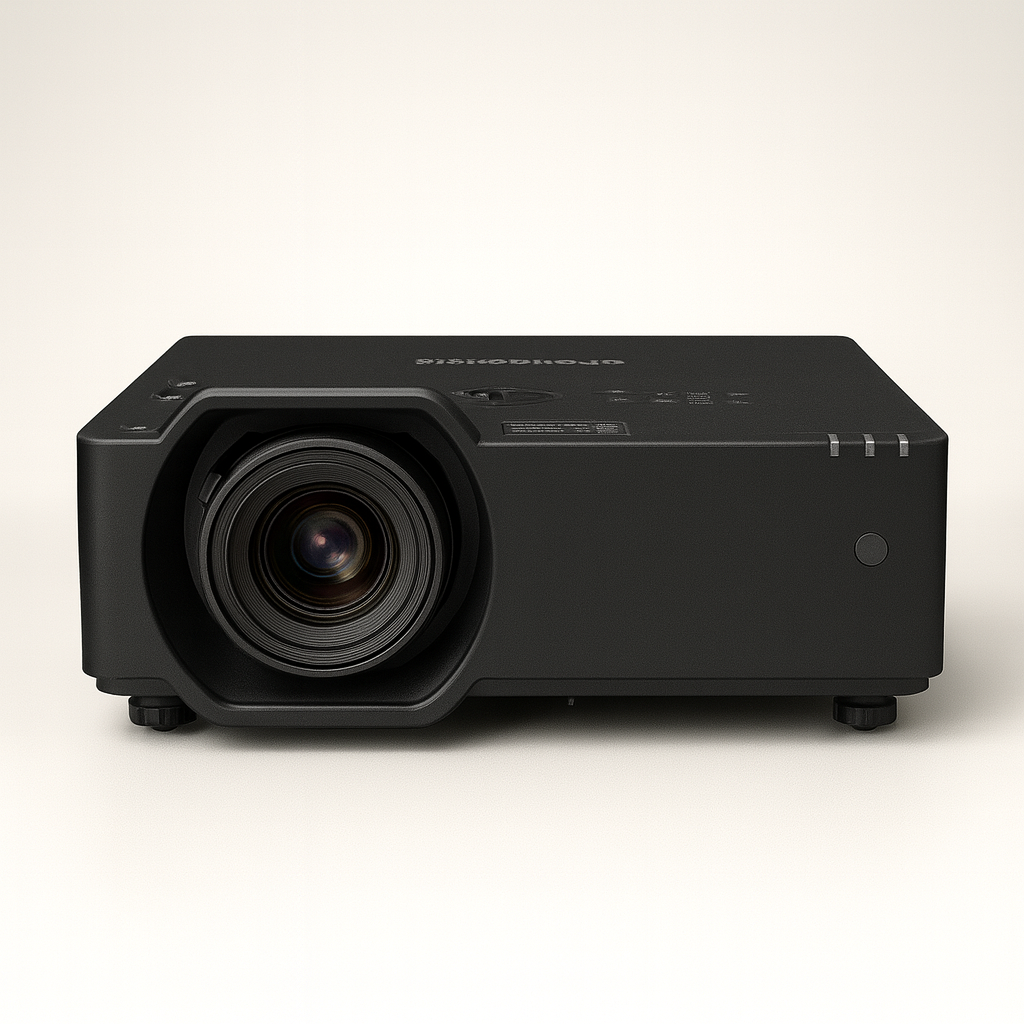

PANASONIC PT-VMZ6STBEJ PROJECTOR

Short-Throw Laser. Bright WUXGA for Sim Bays.

6200-lumen LCD laser projector with 0.80–1.01:1 throw, powered focus and installer-friendly tools.

Panasonic PT-VMZ6STBEJ is a high-brightness, short-throw WUXGA projector built for golf simulators and teaching bays. Its 0.80–1.01:1 throw fills large screens from close range to reduce shadows, while the solid-state laser light source delivers up to 20,000 hours of low-maintenance performance.

Key Benefits

• ⛳ True Short-Throw Flex – 0.80–1.01:1 throw ratio fills big screens from close, ideal for compact garages and studios.
• ⛳ High Brightness – 6200 ANSI lumens for punchy, readable images with some ambient light.
• ⛳ Laser Convenience – Fast on/off and up to 20,000-hour light-source life keep upkeep low.
• ⛳ Installer-Friendly – Powered focus, lens shift (V +50% / H ±20%), H/V keystone & corner fit simplify alignment.
• ⛳ Smart Setup Aids – Angle Monitor and Digital Zoom Extender features support quicker, cleaner installs.

Features & Technical Specs

• ⚪ Resolution: WUXGA (1920 × 1200), 16:10 aspect
• ⚪ Brightness: 6200 ANSI lumens • Contrast: up to 3,000,000:1 (dynamic)
• ⚪ Light Source: Laser phosphor; up to 20,000 hours (mode-dependent)
• ⚪ Throw & Zoom: 0.797–1.01:1 short-throw • ~1.2× manual zoom • Powered focus
• ⚪ Lens Shift: Vertical +50% • Horizontal ±20%
• ⚪ Alignment: H/V keystone, 4-corner/corner fit; Angle Monitor; Digital Zoom Extender
• ⚪ Inputs: 2 × HDMI, VGA, audio, LAN/RS-232 (installer I/O)
• ⚪ Size/Weight: ~414 × 167 × 424 mm; ~8.3 kg (approx., with feet)

Recommended Sim Use

• 🎯 Throw Cheat (16:10): For 120″ diagonal (≈2.59 m wide), plan roughly ~2.07–2.62 m lens-to-screen using the 0.80–1.01:1 range. Scale proportionally for other sizes.
• 🎥 Mounting: Ceiling or shelf; use lens shift to centre the image and keep keystone minimal for maximum sharpness.
• 🖥️ Aspect: Native 16:10 works great with sim UIs; for 4:3 enclosures, use GPU scaling to fill height.

What’s in the Box

• 📦 Panasonic PT-VMZ6STBEJ Projector
• 📦 Remote & Power Cable
• 📦 Documentation

Order Yours Today

🏌️ Want bright, close-range projection without the shadows? Choose the Panasonic PT-VMZ6STBEJ for laser reliability, short-throw placement and installer-friendly setup in your simulator bay.

FAQ

Q: Is this a short-throw model?
A: Yes — the native lens is 0.797–1.01:1, ideal for close mounting in compact rooms.

Q: How bright is it?
A: Rated at 6200 ANSI lumens, suitable for rooms with ambient light (image quality improves as you control light).

Q: Does it have lens shift and powered focus?
A: Yes — lens shift (V +50% / H ±20%) plus powered focus for easy alignment.

Q: How long does the laser last?
A: Up to around 20,000 hours depending on mode and environment.
