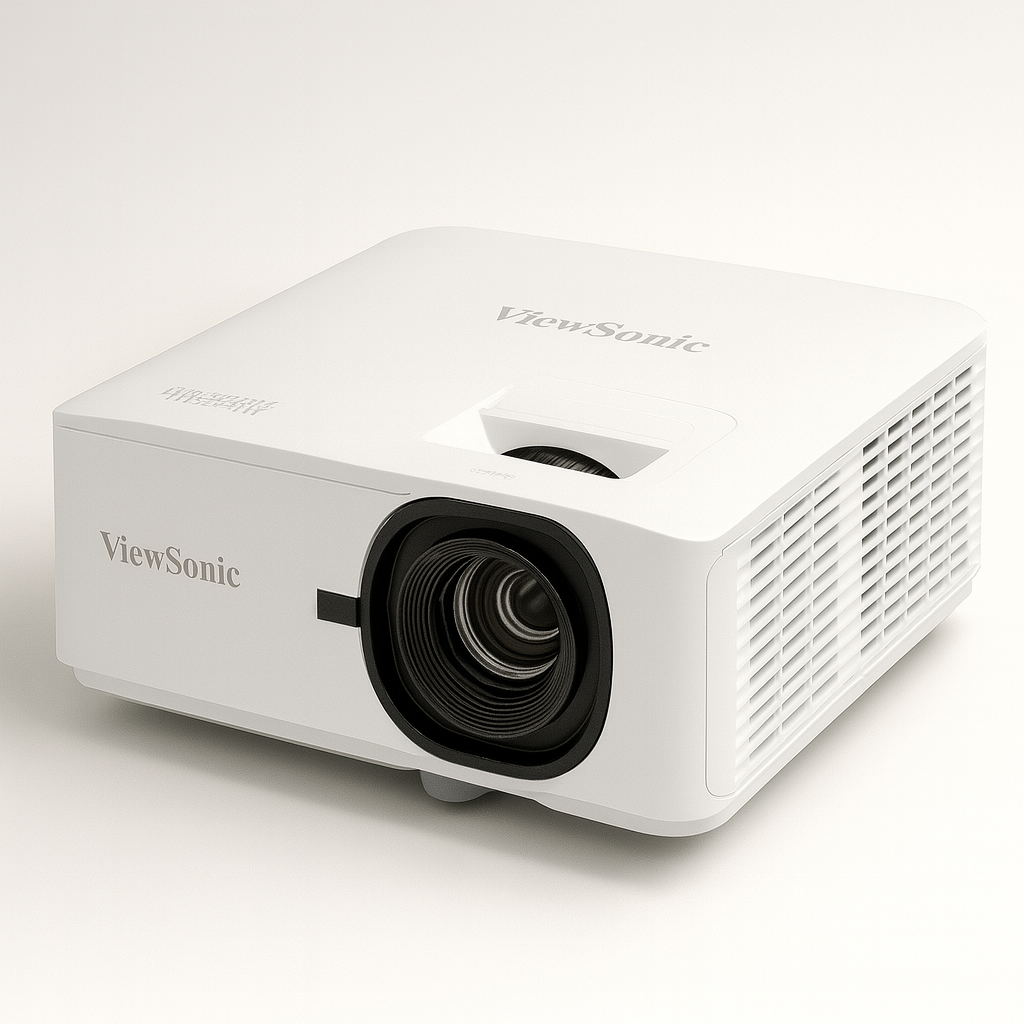

VIEWSONIC LS741HD PROJECTOR
VIEWSONIC LS741HD PROJECTOR
Free UK Shipping + 30-Day Returns
Couldn't load pickup availability
Bright 4K-Input Laser. Flexible Throw.
5000-lumen 1080p laser projector with 1.13–1.47 throw and 1.6× zoom — sim-ready.
The ViewSonic LS741HD delivers bright 5000 ANSI lumens, crisp 1080p resolution with 4K input support, and a versatile 1.13–1.47 throw ratio. A 1.6× zoom lens, horizontal/vertical lens shift and long-life laser engine make it an install-friendly choice for golf simulators, teaching bays and commercial setups.
Key Benefits
- ⛳ Bright Laser Performance – 5000 lm output ensures vivid images in rooms with ambient light.
- ⛳ Flexible Throw & Zoom – 1.13–1.47 throw ratio and 1.6× zoom support a wide range of screen sizes and placements.
- ⛳ Lens Shift for Easy Setup – Vertical ±25% and horizontal ±10% lens shift help align without distortion.
- ⛳ Long-Life Laser – Solid-state light source rated up to 30,000 hours (Eco mode).
- ⛳ 4K Input Support – Accepts 4K/60Hz signals, downscaling cleanly to native 1080p.
Features & Technical Specs
- ⚪ Resolution: 1080p (1920 × 1080), 16:9 aspect — accepts 4K input
- ⚪ Brightness: 5000 ANSI lumens
- ⚪ Contrast: up to 3,000,000:1 (dynamic)
- ⚪ Throw Ratio / Zoom: 1.13–1.47 • 1.6× manual zoom
- ⚪ Lens Shift: Vertical ±25% • Horizontal ±10%
- ⚪ Keystone & Alignment: H/V keystone ±30°, 4-corner adjustment
- ⚪ Light Source: Laser phosphor, up to 30,000 hrs (Eco)
- ⚪ Inputs: 2 × HDMI 2.0 (HDCP 2.2), USB-C, USB-A (power), audio out, LAN/RS-232
- ⚪ Dimensions / Weight: ~405 × 331 × 115 mm; ~6.5 kg
Recommended Sim Use
- 🎯 Throw Cheat: A 100″ image typically requires ~2.5–3.3 m lens-to-screen. Scale proportionally for 150″+ bays.
- 🎥 Mounting: Ceiling or shelf; use lens shift for alignment and minimise keystone for sharpest results.
- 🖥️ Aspect: Native 16:9. For 4:3 enclosures, crop or scale via PC output.
What’s in the Box
- 📦 ViewSonic LS741HD Projector
- 📦 Remote Control & Batteries
- 📦 Power Cable
- 📦 Documentation
Order Yours Today
🏌️ Want bright, flexible projection with installer-friendly tools? Add the ViewSonic LS741HD to your golf simulator bay for vivid images, wide throw adjustment and long-life laser reliability.
FAQ
Q: Does it support 4K?
A: Yes — it accepts 4K/60Hz input and downscales to native 1080p for sharp visuals.
Q: How bright is it?
A: Rated at 5000 ANSI lumens, it handles garage or studio setups with ambient light.
Q: What throw distance do I need?
A: Around 2.5–3.3 m for a 100″ image; adjust for larger screens using the 1.13–1.47 ratio.
Q: Does it have lens shift?
A: Yes — vertical ±25% and horizontal ±10% for flexible alignment.
